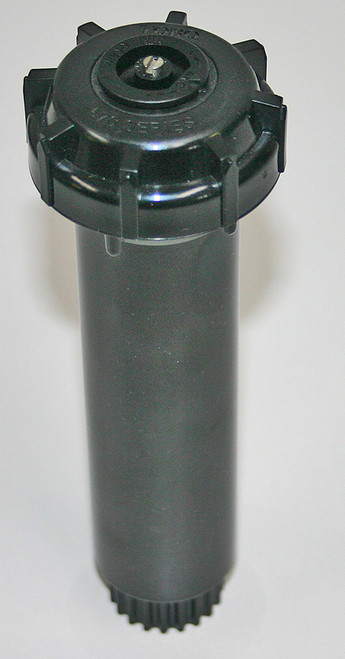

570-8 (570 Series & T-Van8 ) Pop-Up Spray 2.4 m Radius
This is one of the most popular pop-up sprays in the world. With a full 100mm body and simple 1/2" female threaded connection in the base, this spray is very easy to install. It comes with a fully adjustable nozzle from 0 to 360 degrees and covers a radius of 1.75m to 2.4m. On top of the nozzle is a stainless steel adjusting screw that provides a reduction in the radius of throw by up to 25%. A 5.2m nozzle can be reduced to 4.28m, a 4.6 nozzle can be reduced to 3.45m, a 3.7 nozzle can be reduced to 2.78m and, a 3.0m nozzle can be reduced to a radius of 2.25m throw.
The 570 Series pop-up spray is definitely our most popular spray unit. Reliable, easy to install and very easy to adjust, the 570 series will provide years of trouble free operation. 3-year warranty!
- Slim line construction,
- Pressure activated seal,
- Debris cover,
- Stainless steel spring,
- Interchangeable nozzles,
- Variable arc adjustment, 40 - 360 degrees on all nozzles,
Flows and Pressures: 570 Series Pop-Up Sprays
- kPa = pressure at the sprinkler. 172 kPa = 25 psi. 275 kPa = 39 psi.
- Trajectory is the angle of the spray from the ground. 0 Deg is flat.
- 45 Deg = 1/8 of a circle, 90 Deg = 1/4 of a circle, 180 Deg is half a circle.
- Lpm is litres per minute.
- M = metres of throw from the spray head.
